Auto Diagnostics Explained: How Technicians Detect and Fix Vehicle Issues Fast
When your car starts acting up—maybe the engine’s running rough, the gas mileage has dropped, or a strange warning light pops up on the dash—it’s easy to feel frustrated. But here’s the good news: modern automotive diagnostics have come a long way, and experienced technicians can now pinpoint problems faster and more accurately than ever.
At Tools in Motion Auto Service, we specialize in car diagnostic service that goes beyond the basics. While many shops can scan for error codes, we take it several steps further by interpreting that data, performing in-depth tests, and getting to the root of the issue—something we’ve built our reputation on here in Airdrie and Calgary.
So, how exactly does it all work? Let’s take a closer look at how automotive diagnostic tools are used, what happens during a vehicle diagnostics test, and why choosing the right team can make all the difference.
What Is a Car Diagnostic Service?
A car diagnostic service is a process that involves checking your vehicle’s systems—engine, transmission, exhaust, brakes, and other components—for potential issues using specialized tools. The goal is to detect problems early, often before they cause noticeable symptoms or major breakdowns.
It all starts with the vehicle’s onboard computer, known as the OBD (On-Board Diagnostics) system. This system constantly monitors the health and performance of your car. When something isn’t quite right, the OBD triggers the check engine light—or another warning light—on your dashboard.
But here’s where the real work begins. While a quick check engine light scan might tell you there’s a misfire on cylinder #3, it won’t tell you why it’s happening. That’s where skilled technicians—and more advanced diagnostic procedures—come in.
Step 1: Reading the Trouble Codes

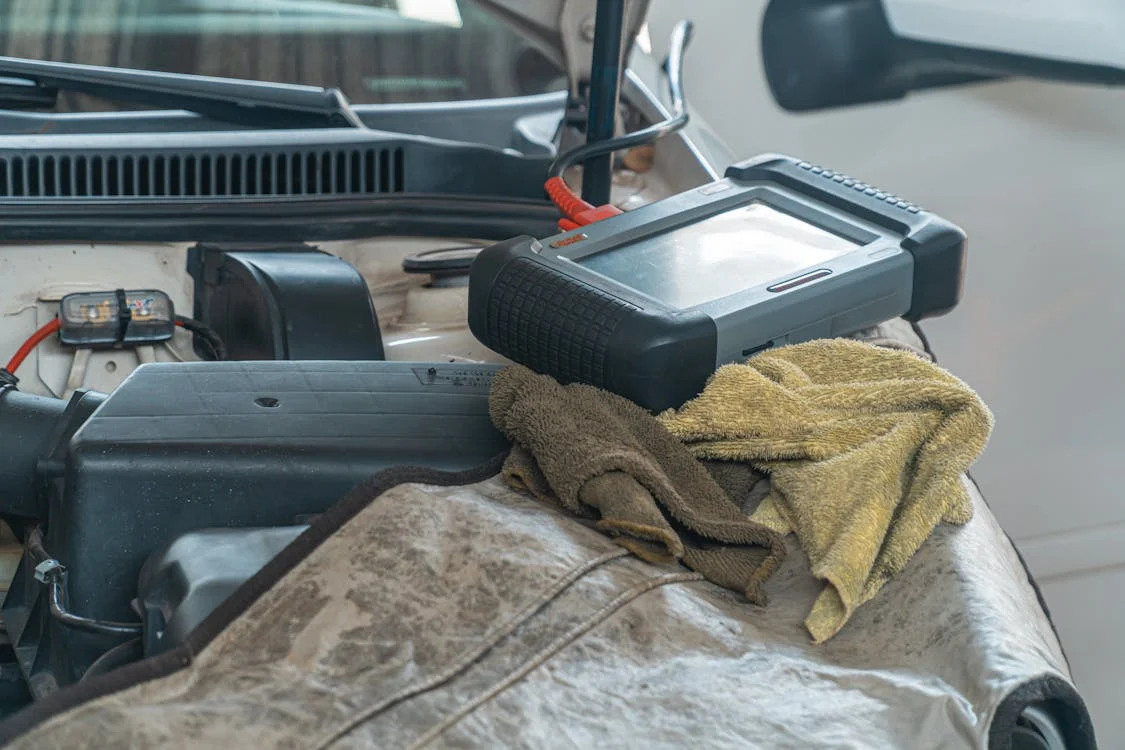

The first step in any diagnostics service is connecting a scan tool to your vehicle’s OBD port. This tool retrieves trouble codes stored in the vehicle’s computer. These codes are like breadcrumbs that lead to a specific system or sensor where something has gone wrong.
For example:
- P0303 might indicate a misfire in cylinder #3.
- P0420 could point to a catalytic converter efficiency issue.
- C0035 might suggest a fault with the ABS wheel speed sensor.
But codes alone don’t tell the full story. A code is a starting point, not a conclusion.
Step 2: Interpreting the Data
This is where experience matters. At Tools in Motion, we don’t just read codes and swap parts. We analyze live data from various sensors and systems while your car is running. This includes things like:
- Air/fuel ratio
- Engine timing
- Oxygen sensor readings
- Throttle position
- Temperature readings
- Fuel trim data
By reviewing this information in real time, we can compare what the system is doing against what it should be doing, allowing us to confirm or rule out possible causes.
We also look at freeze frame data—a snapshot of the car’s conditions at the exact moment a fault occurred. This helps us understand what was going on when the problem triggered a warning light.
Step 3: Advanced Diagnostic Tools and Testing
Some problems hide deeper in the system and need more advanced testing to uncover. That’s where high-end automotive diagnostic tools make a huge difference.
At Tools in Motion, we use factory-level scanners, lab scopes, smoke machines (for checking EVAP leaks), and even thermal imaging to catch the problems other shops might miss. We also specialize in:
- Module diagnostics and repair: Many modern vehicles have 20+ control modules. If one of them fails, we can diagnose and even clone or reprogram it, saving you time and often hundreds of dollars compared to dealership costs.
- Electrical system testing: From battery drain issues to short circuits, we have the tools and training to find even the most elusive electrical gremlins.
This deeper level of diagnostic service is what makes us the go-to shop when others, including dealerships, throw in the towel.
Step 4: Pinpointing the Root Cause
Let’s go back to that misfire code example. A less experienced shop might read the code and immediately replace the spark plug or ignition coil. But what if the real problem is a faulty fuel injector? Or low compression from a worn valve? Replacing parts at random gets expensive fast—and doesn’t solve the issue.
By following a logical diagnostic path—code scan, data analysis, component testing—we get to the actual cause, not just the symptom. This prevents unnecessary repairs and ensures your vehicle is fixed right the first time.
Common Problems Diagnosed with Advanced Testing
Here are just a few real-world issues our diagnostics have uncovered:
- A recurring check engine light that turned out to be a cracked EVAP hose—detected with a smoke machine.
- A rough idle that wasn’t caused by bad spark plugs, but by a sticky EGR valve.
- A no-start condition traced to a faulty crankshaft position sensor, diagnosed with oscilloscope waveform analysis.
- ABS and traction control lights caused by a corroded wiring harness, not the sensor itself.
These kinds of findings can save car owners hundreds, sometimes thousands, of dollars by avoiding trial-and-error part swapping.
How Often Should You Get a Vehicle Diagnostics Test?
There’s no set rule, but here are some situations when a diagnostic check is a smart idea:
- Your check engine light is on. Even if the car feels fine, ignoring the light could lead to bigger issues down the road.
- You’re buying a used car. A pre-purchase inspection with a diagnostic scan can reveal hidden problems.
- You’ve noticed a drop in performance. If your fuel economy tanks, the engine hesitates, or the idle feels rough, it’s time for a check.
- You’re preparing for a long trip. A quick diagnostic check ensures everything’s in good shape before you hit the road.
Why Choose Tools in Motion for Diagnostic Services?
We understand that when your car’s not right, it’s more than just inconvenient—it’s stressful. That’s why we approach every diagnostic job with care, patience, and the best tools available.
Unlike many repair shops that rely on generic scanners and surface-level analysis, Tools in Motion has the expertise to dig deeper. With over 15 years of experience, Tim Clark and the team are proud to offer a level of service trusted by local residents, businesses, and even other shops across Airdrie and Calgary.
We believe in honest work, clear communication, and solving the problem, not just clearing the code.
Your Next Step Toward a Safer, Smoother Ride
If your vehicle’s acting up or your dashboard is lit up like a Christmas tree, don’t wait for it to get worse. Book a car diagnostic service with Tools in Motion Auto Service today, and let our expert team get to the bottom of the issue. We’ll give you real answers, not guesses—and we’ll do it with the integrity and precision that’s made us Airdrie’s trusted repair specialists.
Call us or book online now. Let’s get your car running the way it should—fast, reliable, and worry-free.
